How Thick Are Aluminum Wall Panels? A Comprehensive Guide

Aluminum wall panels have become a dominant force in modern architecture, adorning everything from sleek corporate headquarters to vibrant educational institutions and sprawling industrial facilities. Their popularity stems from a remarkable blend of durability, lightweight properties, design flexibility, and longevity. However, one of the most fundamental and frequently asked questions about this versatile material is: “How thick are they?”

The answer, seemingly simple, is nuanced and critical to the success of any project. The thickness of an aluminum wall panel is not a one-size-fits-all specification; it is a carefully considered variable that directly impacts the panel’s structural performance, cost, aesthetics, and suitability for a specific application. This article provides a comprehensive exploration of aluminum wall panel thickness, delving into the different types of panels, the factors influencing thickness selection, and the implications of that choice.

Part 1: Demystifying the “Sandwich” – Types of Aluminum Wall Panels

To understand thickness, one must first understand that “aluminum wall panel” is an umbrella term for several distinct product types, each with its own construction and thickness profile.

1. Aluminum Composite Material (ACM) / Aluminum Composite Panels (ACP)
This is one of the most common types. ACM panels are a sandwich panel consisting of two thin aluminum sheets bonded to a core material, typically polyethylene (PE) or a fire-retardant mineral core.

• Total Thickness: ACM panels are typically available in total thicknesses of 3mm, 4mm, 5mm, and 6mm. The 4mm panel is arguably the most widely used for standard exterior cladding applications.
• Breakdown of Thickness: In a 4mm ACM panel, the structure is usually as follows:
  • Two aluminum skins: 0.5mm each.
  • Core material: 3mm.
    This highlights a key point: when discussing ACM, the total thickness includes the core. The aluminum skin thickness itself is a separate, critical specification.

2. Solid Aluminum Panels (or Plate Panels)
These are panels formed from a single, solid sheet of aluminum, without a composite core. They are known for their superior flatness, rigidity, and the ability to be formed into dramatic shapes.

• Thickness Range: Solid aluminum panels are specified by the thickness of the single sheet, typically ranging from 1.5mm to 4.0mm.
• Common Gauges: In many regions, thickness is still referred to by gauge. Common gauges for solid panels are 14 gauge (~1.9mm), 16 gauge (~1.3mm), and 18 gauge (~1.0mm). For architectural applications, 2mm and 3mm are very common and provide an excellent balance of strength and formability.

3. Cassette or Tray Panels
This refers not to the material itself but to a common fabrication style where the edges of a solid aluminum panel are folded back to create a “tray” or “cassette.” This creates a highly rigid panel that is mechanically fixed to a sub-structure, creating a clean, shadow-line facade.

• Thickness: These are made from solid aluminum sheets, so the base material thickness follows the same range as solid aluminum panels, typically 2.0mm to 3.0mm for most wall applications.

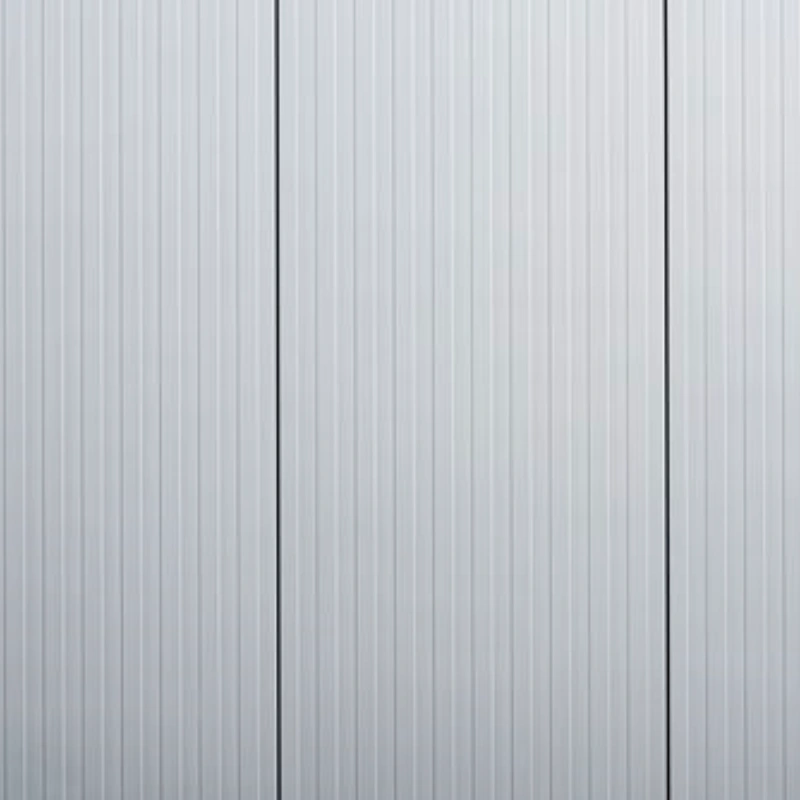

4. Corrugated and Ribbed Aluminum Panels
These panels feature a profiled shape (e.g., trapezoidal, sinusoidal) which adds immense stiffness and spanning capability.

• Thickness: The aluminum sheet used for these profiles is generally thinner, often in the range of 0.7mm to 1.2mm. The structural performance comes from the profile’s geometry, not just the raw material thickness.

Part 2: The Key Factors Dictating Thickness Selection

Choosing the correct panel thickness is an engineering and design decision influenced by a multitude of factors.

1. Application: Exterior vs. Interior

• Exterior Cladding (Curtain Walls, Rainscreens): This is the most demanding application. Panels must withstand wind loads, thermal expansion and contraction, impact, and weather. For ACM, 4mm is the standard minimum, with 5mm or 6mm used for taller buildings or more severe wind conditions. For solid panels, 2.5mm to 3.0mm is common.

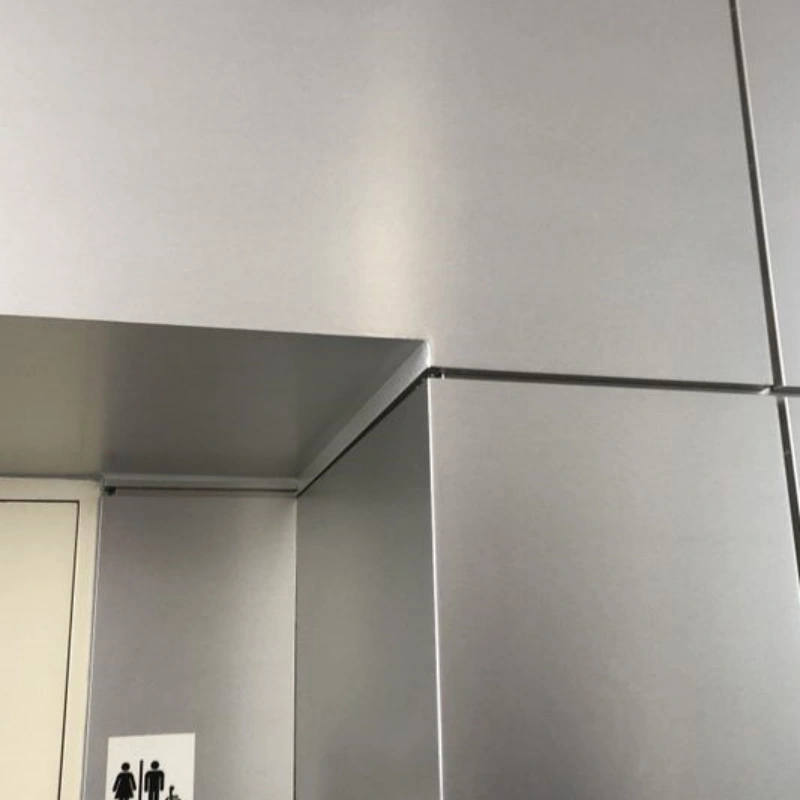

• Interior Applications (Feature Walls, Ceilings, Partitions): Loads are minimal. Thinner, more cost-effective panels are perfectly suitable. ACM panels as thin as 3mm or solid panels as thin as 1.0mm can be used.

2. Wind Load and Structural Requirements
This is arguably the most critical engineering factor. As a building gets taller, wind creates positive and negative pressure (suction) on the facade. Thicker panels, particularly those with a thicker aluminum skin, are more resistant to bending and deformation under these loads. Structural calculations are mandatory to determine the required skin thickness and stiffener spacing for a given project’s location and height.

3. Panel Span and Sub-Structure
The distance between the supporting points of the sub-structure (the “span”) directly influences the required thickness. A wider span requires a thicker, stiffer panel to prevent “oil-canning” (a visible waviness or buckling of the flat surface). A closer support grid can allow for the use of thinner panels.

4. Desired Aesthetic and Flatness
For large, flat facade areas, a thicker panel (e.g., 4mm ACM or 3mm solid) will maintain a smoother, flatter appearance with less risk of oil-canning. Thinner panels are more prone to showing subtle imperfections.

5. Formability and Design Intent
If the design calls for sharp bends, complex curves, or dramatic folds, the aluminum must be ductile enough to be formed without cracking. Thinner solid aluminum panels (e.g., 2.0mm) are more easily formable than very thick ones (e.g., 4.0mm).

6. Budget
Thickness has a direct correlation with cost. Thicker panels with thicker aluminum skins use more raw material and are more expensive. A value-engineering process often involves finding the optimal thickness that meets all performance requirements at the lowest cost.

7. Fire Safety (For ACM Panels)
While the core material dictates the fire performance, the total panel thickness and aluminum skin thickness are part of the overall system’s rating. Building codes in many regions now mandate the use of non-combustible cores (mineral core) for mid- and high-rise buildings, which are available in the standard thickness ranges (e.g., 4mm FR).

Part 3: Implications of Thickness – A Detailed Breakdown

Understanding the trade-offs is essential for informed decision-making.

Thinner Panels (e.g., 3mm ACM, 1.5mm Solid)

• Pros:
  • Lower Cost: Less material means a lower price per square foot/meter.
  • Lighter Weight: Reduces dead load on the building structure.
  • Easier Handling: Lighter and more flexible, making on-site installation potentially faster and less labor-intensive for certain applications.
• Cons:
  • Lower Structural Capacity: More susceptible to damage from impact (e.g., hail, vandalism) and deformation from wind loads.
  • Prone to Oil-Canning: More likely to show visible waviness on large, flat spans, especially under thermal stress.
  • Limited Span: Requires a tighter support grid, which can increase the cost of the sub-structure.
• Ideal For: Interior features, low-rise buildings in sheltered locations, soffits, and signage where spans are short.

Thicker Panels (e.g., 5-6mm ACM, 3-4mm Solid)

• Pros:
  • High Strength and Rigidity: Excellent resistance to wind loads and impact.
  • Superior Flatness: Maintains a smooth, pristine appearance over long spans.
  • Greater Span Capability: Can be installed on a wider sub-structure grid, potentially saving on substructure costs.
  • Perceived Quality: Offers a more substantial, high-end feel.
• Cons:
  • Higher Cost: Significantly more expensive due to increased material use.
  • Heavier Weight: Adds more load to the building’s structure.
  • Less Flexible: More difficult to form into tight curves without specialized equipment.
• Ideal For: High-rise buildings, coastal areas with high winds, projects demanding an impeccable flat finish, and long-span applications.

Part 4: The Specification Sheet – What to Look For

When reviewing product data or specifying panels, precision is key. Avoid vague terms like “thick aluminum.” Instead, demand clear metrics:

1. For ACM Panels:
   • Total Thickness: e.g., 4mm.
   • Aluminum Skin Thickness: e.g., 0.5mm.
   • Core Type: e.g., Fire-Retardant Mineral Core.
2. For Solid Aluminum Panels:
   • Panel Thickness: e.g., 3.0mm.
   • Alloy and Temper: e.g., Alloy 3003-H44 (which defines its strength and formability).
